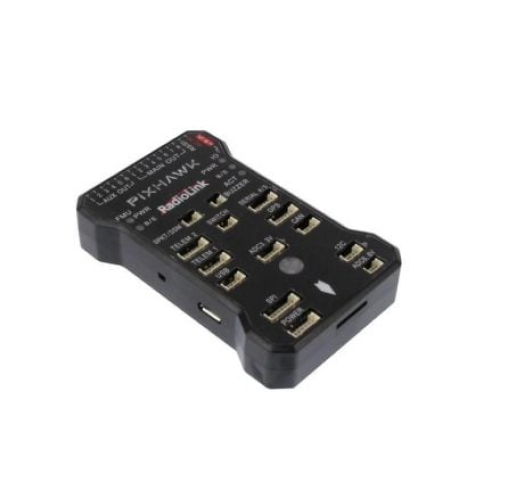

Radiolink Pixhawk Flight controller Board

Category:
Dimension 82.2*51.8*16.5mm (3.2”x2”x0.65”)
Weight 38g (PIXHWAK ONLY)
Main Processor STM32F427VIT6
Coprocessor STM32100C8T6

Radiolink Pixhawk Flight controller Board

2,413.00

Category:

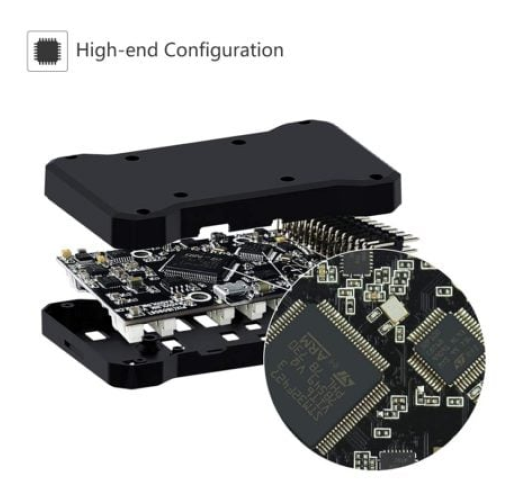

This Pixhawk flight controller from RadioLink has optimized the PCB layout and the barometer height hold, providing more stable flight performance even at high speed. It integrated the newest 32-bit chip technology and high-end sensors, this is absolutely one of the best flight controllers for quadcopters.

Features:

  • Multiple flight modes, support for self-stability, height-set, hover, sports, freestyle, circling, following, return, guidance, automatic, and all-powerful.
  • Multiple flight mode switches freely, Helicopter, Fixed-wing, Multi-rotor, Model Car.
  • Providing a multi-sound buzzer interface.
  • Abundant connectivity options for additional peripherals (GPS, I2C, SPI).
  • Advanced 32-bit CortexM4 ARM high-performance processor, and 32-bit STM32STMF100 failsafe co-processor.
  • 14 PWM / servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible).
  • Support DSM Spektrum receiver.
  • Equipped with a buzzer, 4G memory card, safety switch, and power module.
  • All interfaces are fully tested and accurately detected by an automatic detection system, avoiding bad interfaces leading to flight control installation unsuccessfully.

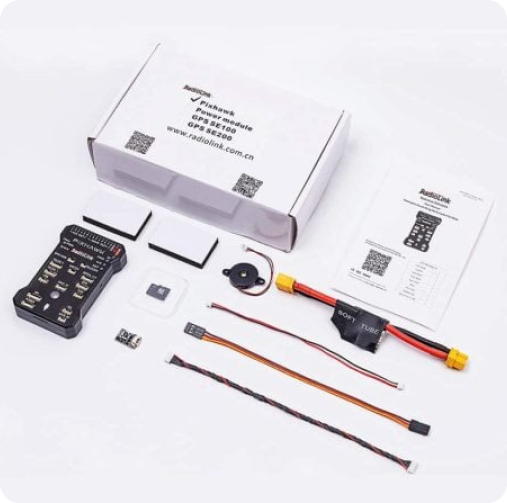

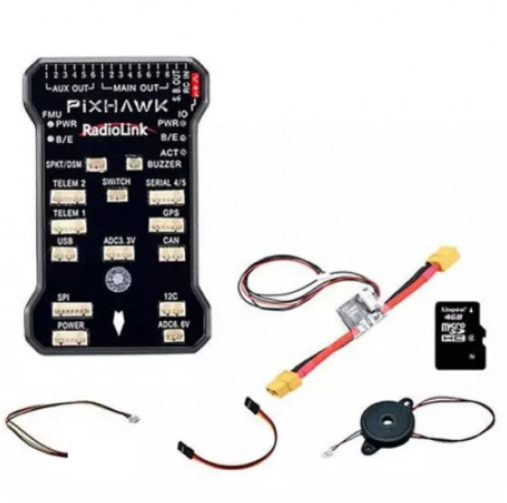

Package Includes:
1 x Radiolink Pixhawk Flight controller Board
1 x Power Module
1 x SD Card
1 x Safety Switch
1 x 3-wire Servo Cable
1 x Buzzer
2 x Mounting Foam

Weight67231724 kg

Reviews

There are no reviews yet.

Be the first to review “Radiolink Pixhawk Flight controller Board”

Your email address will not be published. Required fields are marked *

Dimension82.2*51.8*16.5mm (3.2”x2”x0.65”)
Weight38g (PIXHWAK ONLY)
Main ProcessorSTM32F427VIT6
CoprocessorSTM32100C8T6
GyroMPU6000
E-CompassQMC5883L
BarometerMS5611
PortXH socket
SPK/DSM1
USB Port2
Buzzer1
ADC Port3.3V*1&6.6V*1
SERIAL4/5 Port1
GPS UART1
Operating Voltage of Power Module5.1V
USB Voltage5v +- 0.3V
Operating Temperature-40~80c
