Package Includes:
- N7 Flight Controller
- Power Module
- M9N GPS Module
- Connection Wires

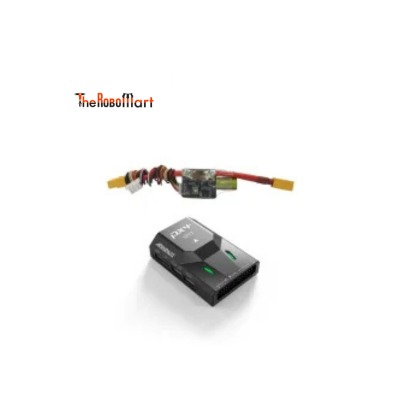

SIYI N& Autopilot Flight Controller with M9N GPS and Power Module
SIYI N& Autopilot Flight Controller with M9N GPS and Power Module
Original price was: ₹40,000.00.₹38,500.00Current price is: ₹38,500.00.
| Weight | 67231724 kg |
|---|
| Main Processor | STM32H743IIK6 (32 Bit Arm® Cortex®-M7, 480 MHz, 2 MB memory, 1 MB RAM) |
| Co-Processor | STM32F103 (32 Bit Arm® Cortex®-M3, 72 MHz, 20 KB SRAM) |
| Accelerometer / Gyro | BMI088 / ICM20689 |
| Electronic Compass | IST8310 |
| Barometer | MS5611 |
| UART serial port | 4 |
| I2C | 3 |
| CAN | 1 |
| PWM Output | 8 x Standard PWM IO 5 x Programmable IO |
| RC input (SBUS) | 1 |
| Power Module Input | 1 |
| GPS & safety | 1 |
| USB Type C | 1 |
| Compatible Model | PX4 / ArduPilot Firmware |
| Power Module voltage input | 4.5 ~ 5.5 V |
| USB Voltage Input | 5 V (±0.25 V) |
| Servo Voltage Input | 0 ~ 10 V |
| Working Temperature | -20 ℃ ~ 65 ℃ |
| Dimensions | 47 x 68 x 19 mm |
| Weight | 57 g |
